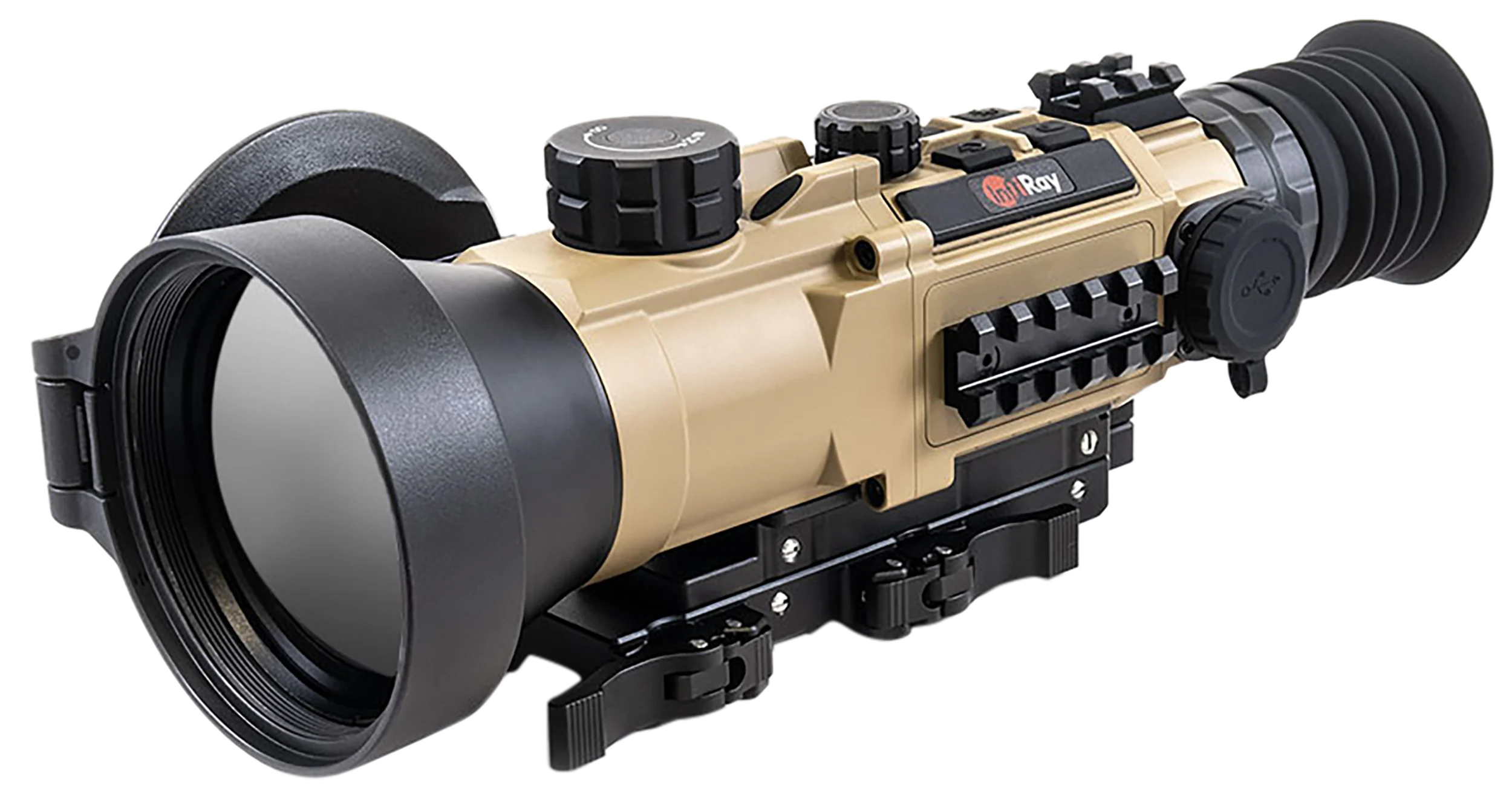

InfiRay Outdoor RICO HYBRID 640 Thermal Weapon Sight, 4x Base, 75mm Lens, 2560x1920 AMOLED HYH75W

Product Description

The InfiRay Outdoor RICO HYBRID HYH75W combines the strengths of a thermal clip-on and a dedicated thermal weapon sight into one versatile optic. As a stand-alone sight it delivers a 3,600-yard detection range, and as a clip-on it is compatible with day optics up to 10x. A low‑distortion orthoscopic eyepiece paired with a large 1.03-inch 2560×1920 AMOLED display provides edge-to-edge clarity for comfortable viewing in either mode. The HYBRID platform unlocks advanced capabilities including an optional 1,000-yard laser rangefinder module, a custom reticle generator with 9 total reticles (7 static, 1 DIY, 1 BDC), Bluetooth remote support, onboard recording with recoil‑activated video, and an onboard ballistic solver.

Product Highlights

• Dual‑use thermal optic: quick‑swap between clip‑on inline mode and dedicated weapon sight
• High‑resolution 640×512, 12 µm sensor with 50 Hz refresh for smooth, detailed imaging
• 75mm f/1.0 germanium objective and 4x optical base magnification with up to 8x digital zoom
• Ultra‑sharp 1.03" 2560×1920 AMOLED display and low‑distortion eyepiece for edge‑to‑edge clarity
• Optional ILR‑1000‑2 laser rangefinder via USB‑C; recoil‑activated video and 64GB internal storage

Specs

• Device Technology: Thermal Imaging
• Sensor Type: InfiRay MICRO II
• Sensor Resolution: 640×512
• Sensor Pixel Size: 12 µm
• Sensor Frame Rate: 50 Hz
• Thermal Sensitivity: <25 mK
• Objective Lens: 75mm f/1.0 germanium
• Optical Magnification: 4×
• Digital Magnification: up to 8×
• Display: 1.03" AMOLED, 2560×1920
• Eye Relief: 60mm
• Diopter Range: −4 to +2
• Field of View (H×V): 5.9° × 4.4°
• Detection Range: 3,600 yards
• Reticles: 9 total (7 Static, 1 DIY, 1 BDC)
• Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
• Onboard Recording/Image Capture: Yes; Recoil‑Activated Video
• Storage Capacity: 64GB
• Connectivity: Wi‑Fi; USB‑C Power/Data; Mobile App; User‑updatable firmware
• Mounting Interface: Picatinny MIL‑STD‑1913 rail
• Housing Material: Magnesium Alloy
• Ingress Protection: IP67
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Power Source: IBP‑1H Li‑ion Battery Pack; USB‑C external power
• Run Time: 6+ hours
• Startup Time: <10 seconds; Instant from standby
• Dimensions (L×W×H): 12.20" × 4.13" × 3.58"
• Weight: 45.08 oz
• Operating Temperature: −4°F to 122°F
• Rangefinder Compatibility: ILR‑1000‑2 (optional, not included)
• Country of Manufacture: China
• UPC: 850048751118
• Manufacturer Part Number: HYH75W
• Brand: InfiRay Outdoor
